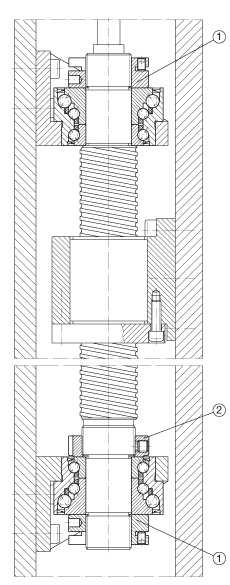

d 30 Tolerance: -0,010 D 75 Tolerance: -0,013 B 56 Tolerance: -0,25 da min 47 D1 110 J 95 5 5 Axial runout The axial runout data for screw drive bearing arrangements are based on the rotating inner ring. nG Fett 1600 Limiting speed for grease lubrication A 85 Ca 59000 Basic dynamic load rating, axial, ← 8 x M8 8 x M8 Quantity x size of fixing screws to DIN 912-10.9 Tightening torque of fixing screws according to manufacturers data. Screws not included in delivery. Mm 3,23 Mass moment of inertia for rotating inner ring Locknuts not included in delivery. d2 8,8 da max 64 Attention! The bearings require continuous load in the main load direction H. C0a 257000 Basic static load rating, axial, in main load direction H, → 2) ZM35 Designation of recommended INA locknut Heavy series MRL 1,5 Bearing frictional torque m 2,5 Mass rmin 0,3 caL 1300 Axial rigidity ← 1) AM30/65 Designation of recommended INA locknut ckL 650 Tilting rigidity B1 35 d1 51 r1 min 0,6 C0a 108000 Basic static load rating, axial, ← caL 1600 Axial rigidity → Ca 106000 Basic dynamic load rating, axial, in main load direction H, → Type: |
