96925 - 96140CD bearinginquiry
| Bearing Weight | 101.0922 lb
45.8546 Kg
|

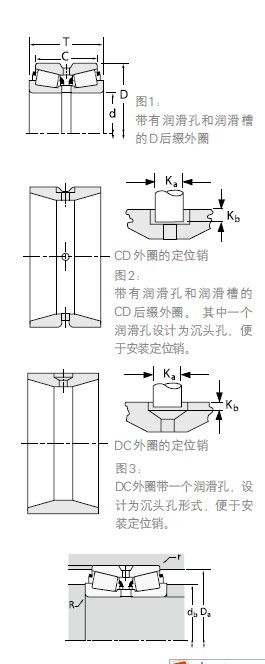

| D - Cup Outer Diameter | 14.0000 in
355.600 mm
|
| d - Cone Bore | 9.2500 in
234.950 mm
|
| B - Cone Width | 2.6250 in
66.675 mm
|
| C - Double Cup Width | 4.3750 in
111.125 mm
|
| T - Bearing Width across Cones | 5.9999 in
152.397 mm
|
| Z - Number of Rollers Per Row | 32
|
| Ka - Locking Pin Diameter | 1.375 in
34.9 mm
|
| Kb - Locking Pin Depth | 0.406 in
10.3 mm
|
| R - Cone Backface "To Clear" Radius1 | 0.280 in
7.100 mm
|
| r - Cup Frontface "To Clear" Radius2 | 0.06 in
1.5 mm
|
| db - Cone Backface Backing Diameter | 10.43 in
264.90 mm
|
| Da - Cup Frontface Backing Diameter | 13.16 in
334.01 mm
|
| Aa - Cage-Cone Backface Clearance | 0.47 in
11.90 mm
|
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 | 44200 lbf
197000 N
|
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 | 297000 lbf
1320000 N
|
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 | 77000 lbf
343000 N
|
| Ca90 - Dynamic Thrust Rating (90 million revolutions)4 | 44700 lbf
199000 N
|
| Y1 - ISO Factor3 | 0.48
0.72
|
| G1 - Heat Generation Factor (Roller-Raceway)5 | 1140
|
| G2 - Heat Generation Factor (Rib-Roller End) | 160
|
| Cg - Geometry Factor6 | 0.163
|
|
 |
Sales the 96925 - 96140CD bearings, condition monitoring and technical supports. we can
assure the quality of the Timken 96925 - 96140CD bearings we provide, at the same time guarantee
the price is always competitive. As our valued customers, you always have a
peace in mind when using 96925 - 96140CD bearings..
