M272749 - M272710D bearinginquiry
| Bearing Weight | 674.6618 lb
306.0212 Kg
|

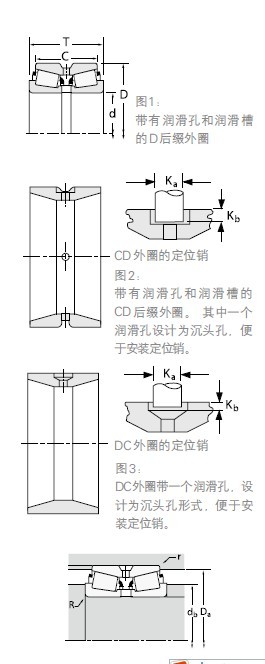

| D - Cup Outer Diameter | 26.7500 in
679.450 mm
|
| d - Cone Bore | 18.8750 in
479.425 mm
|
| B - Cone Width | 5.0625 in
128.588 mm
|
| C - Double Cup Width | 8.7500 in
222.250 mm
|
| T - Bearing Width across Cones | 10.8749 in
276.222 mm
|
| Z - Number of Rollers Per Row | 36
|
| Ka - Locking Pin Diameter | N/A
|
| Kb - Locking Pin Depth | N/A
|
| R - Cone Backface "To Clear" Radius1 | 0.250 in
6.400 mm
|
| r - Cup Frontface "To Clear" Radius2 | 0.06 in
1.5 mm
|
| db - Cone Backface Backing Diameter | 20.31 in
515.90 mm
|
| Da - Cup Frontface Backing Diameter | 25.53 in
648.21 mm
|
| Aa - Cage-Cone Backface Clearance | 0.39 in
9.90 mm
|
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 | 218000 lbf
968000 N
|
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 | 1460000 lbf
6500000 N
|
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 | 379000 lbf
1680000 N
|
| Ca90 - Dynamic Thrust Rating (90 million revolutions)4 | 124000 lbf
551000 N
|
| Y1 - ISO Factor3 | 0.97
1.44
|
| G1 - Heat Generation Factor (Roller-Raceway)5 | 8110
|
| G2 - Heat Generation Factor (Rib-Roller End) | 508
|
| Cg - Geometry Factor6 | 0.26
|
|
 |
