EE126096D - 126150 bearinginquiry
| Cone Part Number | EE126096D
|
| Bearing Weight | 128.4000 lb
58.3000 Kg
|

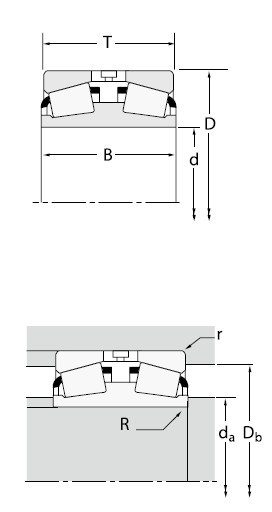

| D - Cup Outer Diameter | 15.0000 in
381.000 mm
|
| d - Cone Bore | 9.6250 in
244.475 mm
|
| B - Double Cone Width | 5.7500 in
146.050 mm
|
| C - Cup Width | 2.2500 in
57.150 mm
|
| T - Bearing Width across Cups | 5.7500 in
146.050 mm
|
| Z - Number of Rollers Per Row | 29
|
| R - Cone Frontface "To Clear" Radius1 | 0.130 in
3.30 mm
|
| r - Cup Backface "To Clear" Radius2 | 0.190 in
4.80 mm
|
| da - Cone Frontface Backing Diameter | 10.59 in
269.00 mm
|
| Db - Cup Backface Backing Diameter | 13.50 in
342.90 mm
|
| Ab - Cage-Cone Frontface Clearance | 0.72 in
18.30 mm
|
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 | 52900 lbf
235000 N
|
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 | 355000 lbf
1580000 N
|
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 | 92100 lbf
410000 N
|
| Ca90 - Dynamic Thrust Rating (90 million revolutions)4 | 46800 lbf
208000 N
|
| G1 - Heat Generation Factor (Roller-Raceway)5 | 1320
|
| G2 - Heat Generation Factor (Rib-Roller End) | 169
|
| Cg - Geometry Factor6 | 0.164
|
|
 |
