EE234157D - 234215 bearinginquiry
| Cone Part Number | EE234157D
|
| Bearing Weight | 198.0000 lb
89.8000 Kg
|

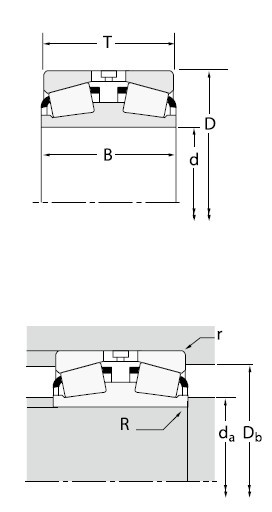

| D - Cup Outer Diameter | 21.5000 in
546.100 mm
|
| d - Cone Bore | 15.5000 in
393.700 mm
|
| B - Double Cone Width | 4.7500 in
120.650 mm
|
| C - Cup Width | 2.1875 in
55.563 mm
|
| T - Bearing Width across Cups | 5.5624 in
141.285 mm
|
| Z - Number of Rollers Per Row | 42
|
| R - Cone Frontface "To Clear" Radius1 | 0.130 in
3.30 mm
|
| r - Cup Backface "To Clear" Radius2 | 0.250 in
6.40 mm
|
| da - Cone Frontface Backing Diameter | 16.54 in
420.10 mm
|
| Db - Cup Backface Backing Diameter | 19.84 in
503.90 mm
|
| Ab - Cage-Cone Frontface Clearance | 0.05 in
1.30 mm
|
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)1 | 63300 lbf
282000 N
|
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)2 | 425000 lbf
1890000 N
|
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)3 | 110000 lbf
490000 N
|
| Ca90 - Dynamic Thrust Rating (90 million revolutions)4 | 51600 lbf
230000 N
|
| G1 - Heat Generation Factor (Roller-Raceway)5 | 2780
|
| G2 - Heat Generation Factor (Rib-Roller End) | 448
|
| Cg - Geometry Factor6 | 0.202
|
|
 |
