NSK 1201 bearing

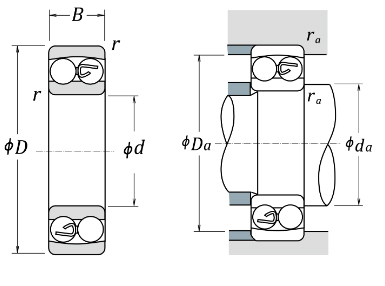

Boundary Dimensions
d 12 mm Bore diameterD 32 mm Outside diameter
B 10 mm Width
r (min.) 0.6 mm Chamfer dimension
Basic Load Ratings
Cr 6250 N Basic dynamic load rating
C0r 1270 N Basic static load rating
Speeds
Grease 22000 min-1 Grease lubrication
Oil (Oil-bath) 26000 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 16 mm Diameter of shaft abutment
Da (max.) 28 mm Diameter of housing abutment
ra (max.) 0.6 mm Radius of shaft or housing fillet
Calculation factors
e 0.36 Constant
Y2 2.7 Axial load Factors
Y3 1.8 Axial load Factors
Y0 1.8 Axial load Factors
Mass
(approx.) 0.039 kg
