NSK 2322K 2322

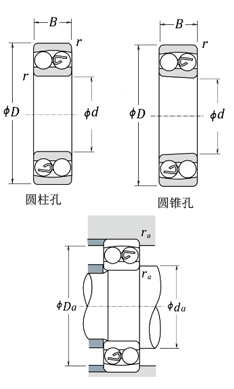

Boundary Dimensions
d 110 mm Bore diameter
D 240 mm Outside diameter
B 80 mm Width
r (min.) 3 mm Chamfer dimension
Basic Load Ratings
Cr 233000 N Basic dynamic load rating
C0r 94500 N Basic static load rating
Speeds
Grease 2200 min-1 Grease lubrication
Oil (Oil-bath) 2800 min-1 Oil-bath lubrication
Dimensions
0.5
Abutment and Fillet Dimensions
da (min.) 123 mm Diameter of shaft abutment
Da (max.) 227 mm Diameter of housing abutment
ra (max.) 2.5 mm Radius of shaft or housing fillet
Calculation factors
e 0.37 Constant
Y2 2.6 Axial load Factors
Y3 1.7 Axial load Factors
Y0 1.8 Axial load Factors
Mass
(approx.) 17.3 kg
Associated products
Adapter H2322X Adapter
