ZWZ 32260

Boundary Dimensions
d 300 mm Bore diameter
D 540 mm Outside diameter
T 149 mm Total width
B 140 mm Width of inner ring
C 115 mm Width of outer ring
Cup r (min.) 5 mm Chamfer dimension of outer ring (Cup)
Cone r (min.) 6 mm Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr 2730000 N Basic dynamic load rating
C0r 3700000 N Basic static load rating
Speeds
Grease 600 min-1 Grease lubrication
Oil (Oil-bath) 800 min-1 Oil-bath lubrication
Dimensions
a 131.6 mm Effective load center
Abutment and Fillet Dimensions
da (min.) 333 mm Diameter of shaft abutment
Db (min.) 514 mm Diameter of housing abutment
Da (min.) 458 mm Diameter of housing abutment
Da (max.) 518 mm Diameter of housing abutment
Sa 15 mm Minimum width of space required in housing on large side face
Sb 34 mm Minimum width of space required in housing on small side face
db (max.) 352 mm Diameter of shaft abutment
ra (max.) 5 mm Radius of shaft or housing fillet of inner ring
ra (max.) 4 mm Radius of shaft or housing fillet of outer ring

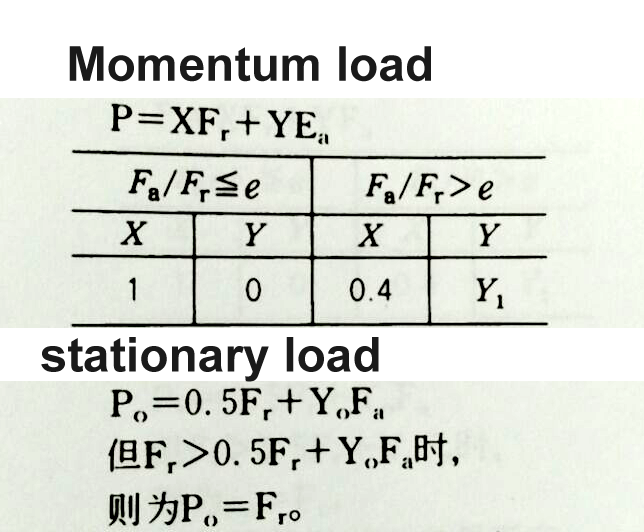

Calculation factors
e 0.46 Constant
Y0 0.72 Axial load Factors
Y1 1.3 Axial load Factors
Mass
(approx.) 132 kg
